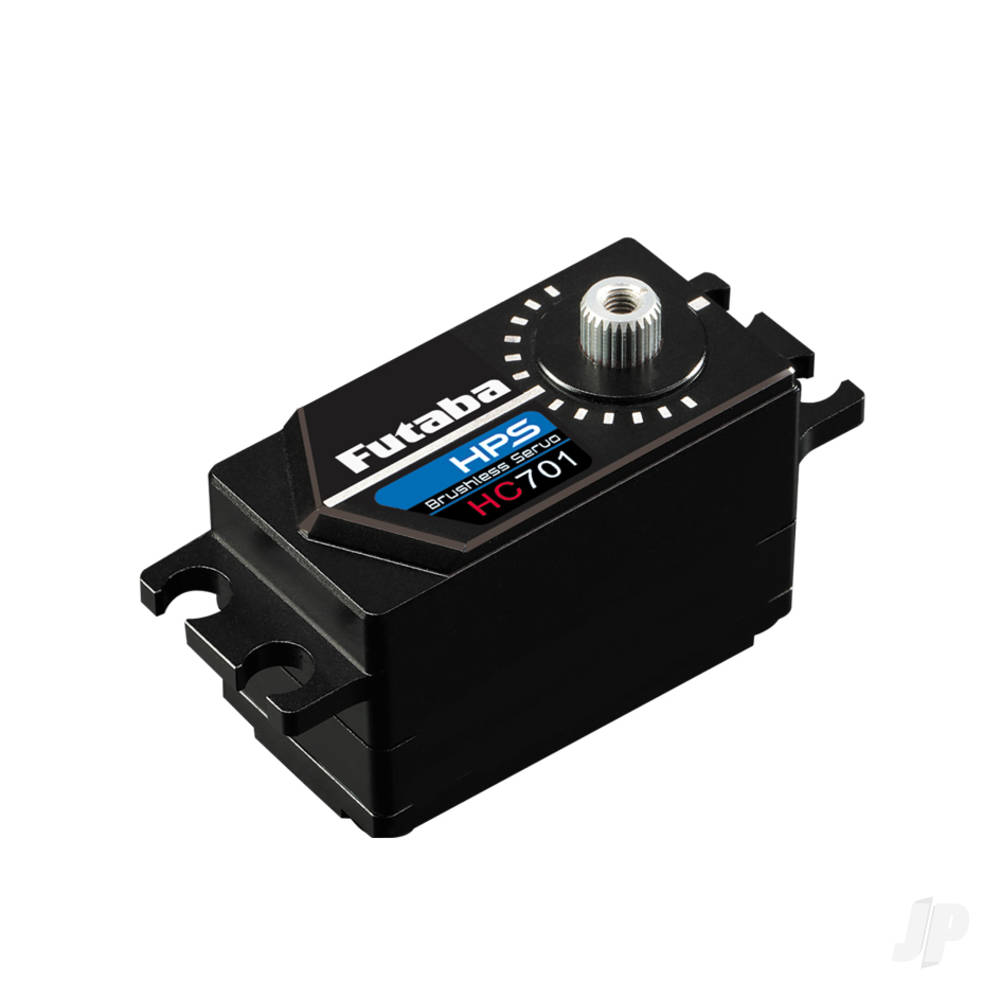

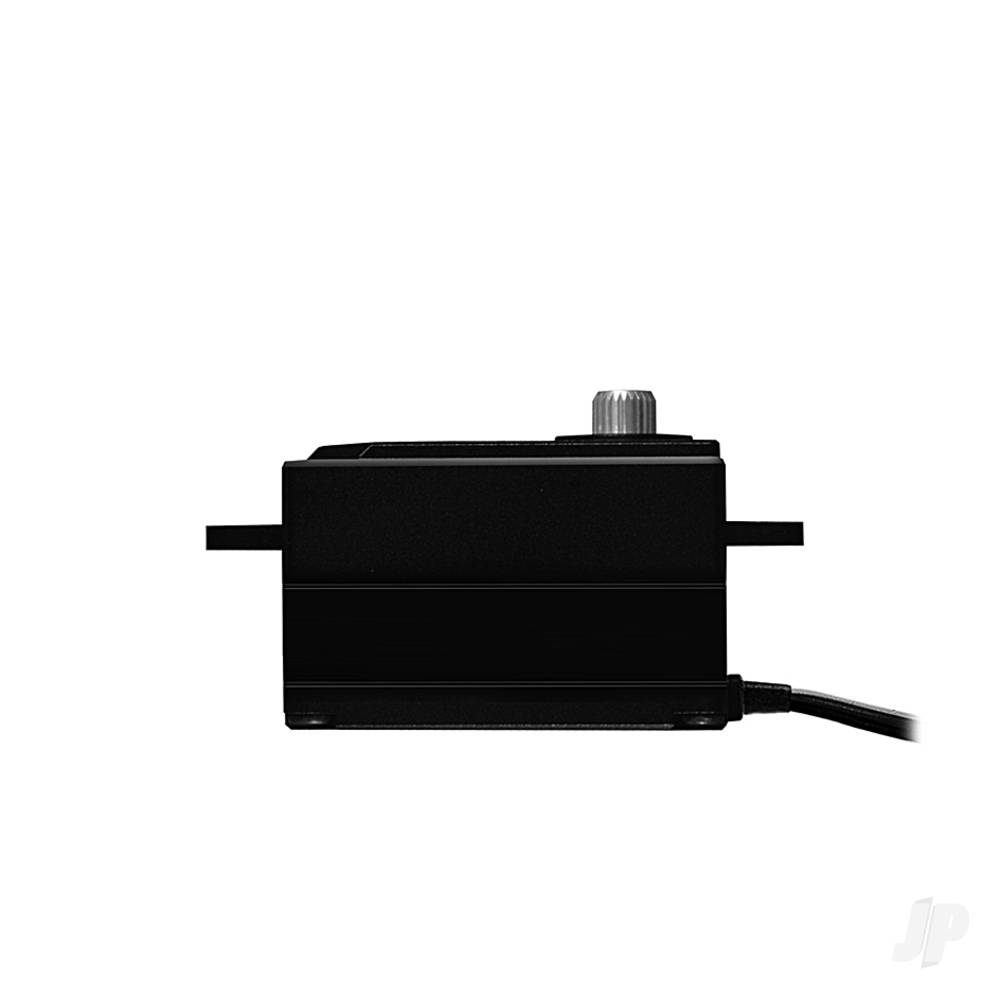

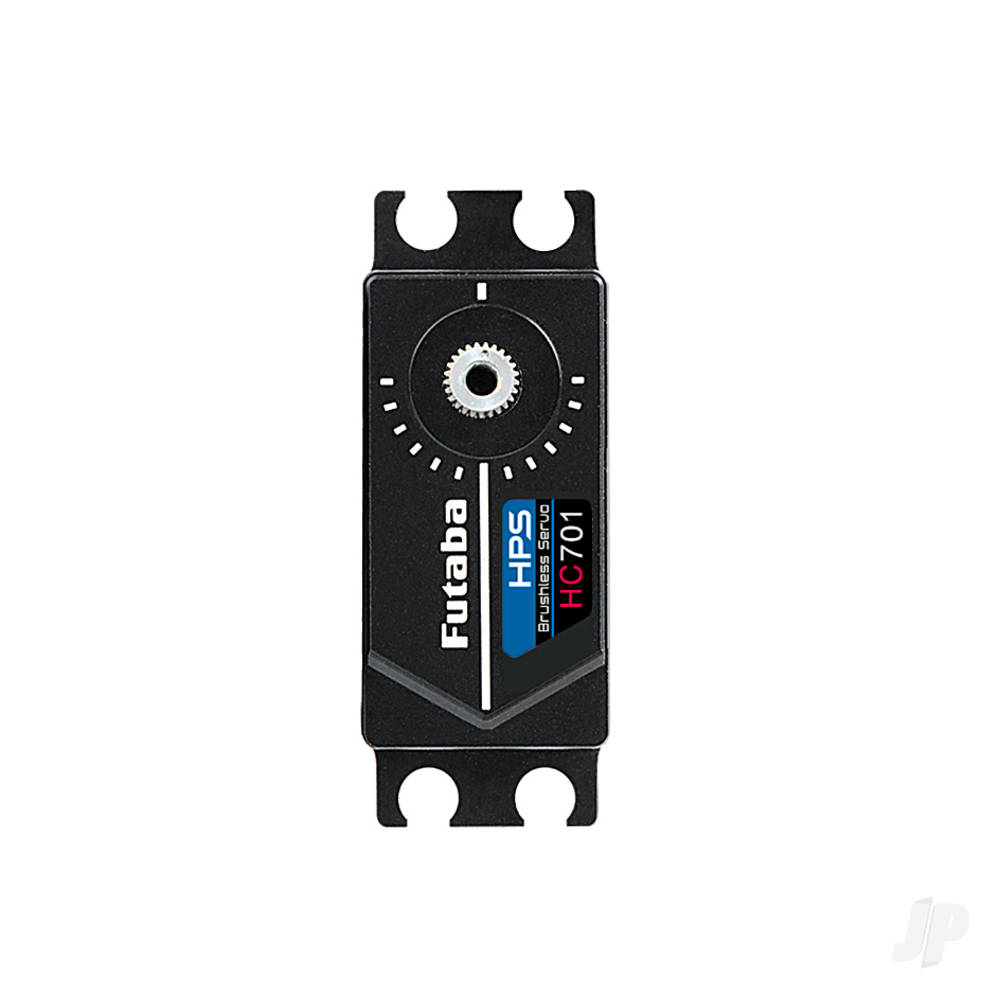

HPS-HC701 Standard Brushless Servo PWM/S.Bus2 20.0kg 0.075s 4.8V - 7.4V
£214.99
SAVE: £21.50
£193.49
Next Working Day Delivery
In Stock : Order within 08 hrs 44 mins for delivery by Saturday, 1st November (UK Mainland)
Safe & Secure Checkout
SKU: FUT05102718-3
Brand: Futaba
FEATURES
- Suitable for RC helicopters 500-800 3D/F3C
- Programmable/HV Brushless Servo
- Custom New high power Brushless Motor
- Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3)
- Programmable and compatible with S.Bus and S.Bus2 systems
- Can be connected to a PC using the CIU-2/-3 USB adapter sold separately
- Upper/middle/bottom: Aluminium Case
CONTENTS
- Horns
- Mounting Hardware
DETAILS
High Performance cyclic Servo with Brushless Motor (1520uS/760uS switchable)
1520uS:
Speed:
0.07 sec/60 (7.4V)
0.08 sec/60 (6.6V)
Torque:
30.0gfcm (7.4V)
26.5kgfcm (6.6V)
416.6ozfin (7.4V)br>368.0ozfin (6.6V)
760uS:
Speed:
0.07 sec/60 (7.4V)
0.08 sec/60 (6.6V)
Torque:
27.0kgfcm (7.4V)
24.0kgfcm (6.6V)
375.0ozfin (7.4V)br>333.3ozfin (6.6V)
Dimensions:
40.5 x 21.0 x 26.2 mm
1.59 x 0.83 x 1.03 in
Weight:
54 g
1.90 oz
Rated Voltage:
DC 6.0V - 7.4V
Operating Voltage:
DC 4.8 - 8.4V
NO DRY BATTERY USE
